ardo master

Suction pump

With a suction power of 50 L/min, Ardo Master is one of the high-performance pumps amongst surgical suction pumps. Along with its high quality and ease of use, it impresses with its extremely quiet operation. It is compatible with both reusable secretion containers as well as single-use collection systems.

Check it out for yourself with a free trial; we are happy to advise you.

Test now

At a glance

  • Ideal for all applications that require a high suction power of up to 50 L/min
  • The double piston system ensures that the vacuum is quickly generated and the suction is reliably maintained
  • Aspirator that is so quiet and low vibration that you barely know it’s there
  • Almost frictionless glass cylinder/graphite piston system that is self-lubricating, maintenance free, very durable and practically silent
  • Manufactured from premium components with precision craftsmanship in Switzerland
  • Ardo Master is optionally available with a foot switch to switch the suction pump on and off

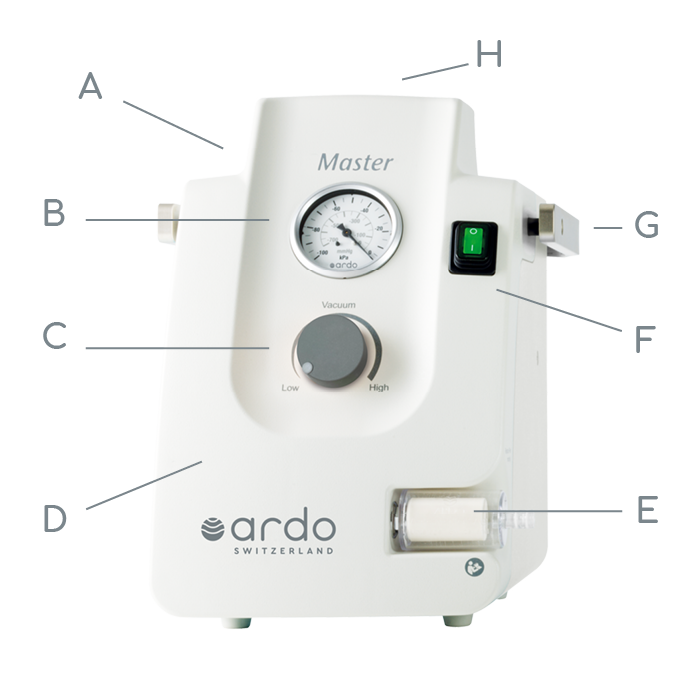

Product features

A - maintenance-free glass cylinder/graphite piston drive

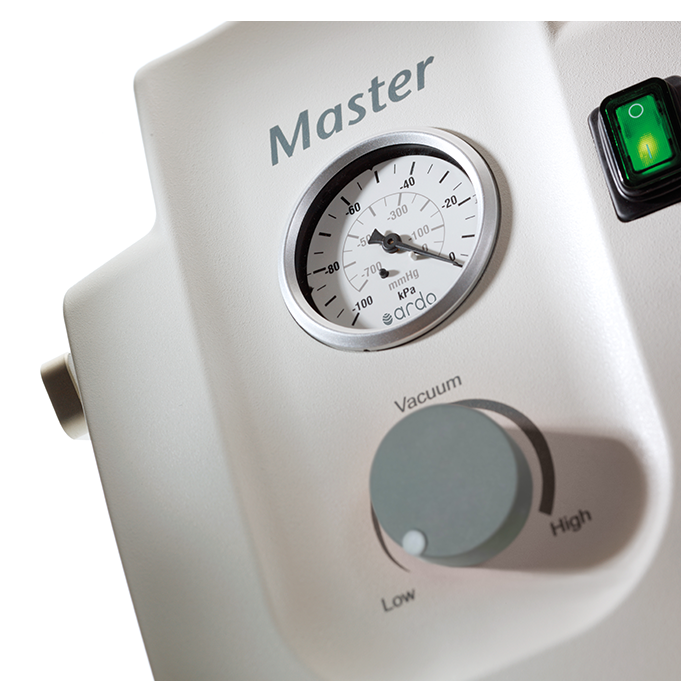

B - easy to read manometer

C - intuitive operation

D - easy to clean surfaces

E - bacterial filter to protect against liquids and bacteria

F - indicator light for foot switch (optional)

G - universal equipment rail

H - integrated carry handle


Examples of application

  • Surgery
  • Orthopaedics
  • Liposuction
  • Oral & maxillofacial surgery
  • Dentistry
  • Veterinary medicine
  • General suction of secretions

Technical specifications

The most important data at a glance:

Operating voltage:

230 VAC

Suction power max.:

50 L/min ±15%

Vacuum max.:

-95 kPa / -713 mmHg

Size (W×D×H):

250 × 285 × 335 mm

Weight:

7.4 kg


Delivery contents

  • Vacuum pump with integrated carry handle and equipment rail
  • Connection tube, 50 cm, silicone
  • 5 bacterial filters
  • Instructions for use
  • For the corresponding version: Foot switch

Accessories

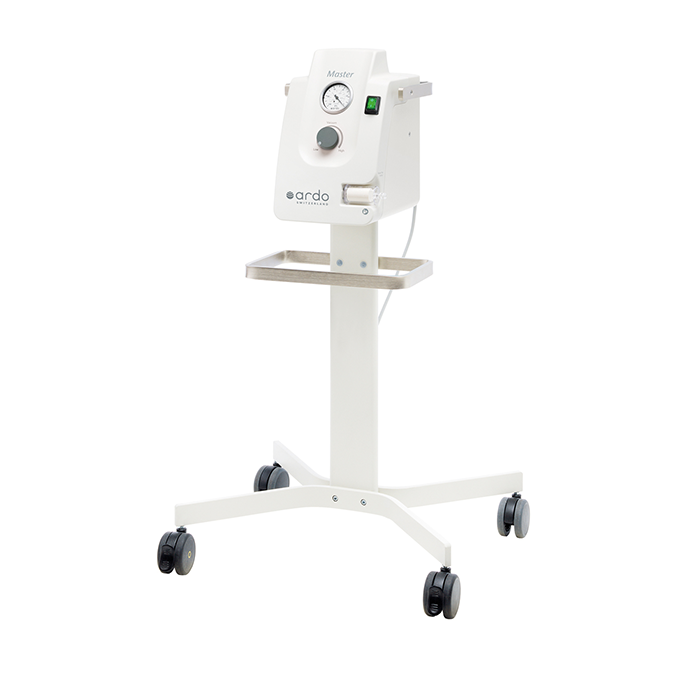

Roller frame
Request an offer
Bacterial filters
Request an offer
Instrument shelf
Request an offer
Foot vacuum controller
Request an offer
Switching valve
Request an offer
